Refresh Rate 1920Hz Car LED Advertising Screen IP30 Protection Class
Wide operating temperature range P2.6 -P5.2mm car LED Advertising Screen

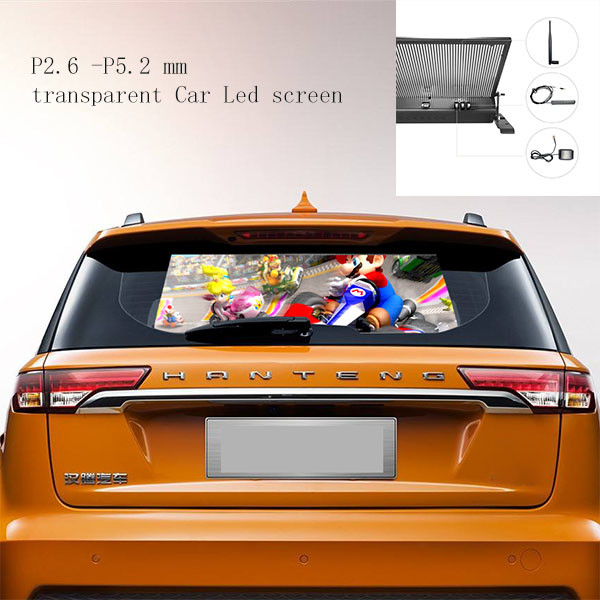

1. The P2.6 car transparent screen, the basic white balance brightness is above 2500cd , so it can easily adapt to various weather conditions, the picture is always bright and clear, all-weather display.
2. Where the car is , where is the screen . The on- board screen accompanies the vehicle to flow to cities , towns , and villages , and can still continuously receive , store , and display information during the flow , so it has a wide range of publications and can be targeted for For vehicle functionality , combined with big data , targeted , fixed- area , and timed delivery of response content ( especially advertising content ) , to efficiently and accurately reflect the core demands of content providers . Reach the most valuable audience .
3. The series supports secondary development, such as positioning function, trajectory query, high beam reminder, automatic call for help, etc.
| module | project | parameter |
| Product number | P2.6 -P5.2 |
| Module size | W 156mm * H 249.6mm |
| Physical point spacing | W5.2mm*H P2.6mm |
| pixel density | 73 964 pixels/m² |
| Glowing point color | 1R1G1B |
| LED package | SMD1921 |
| Module Resolution | 30 (W)* 96 (H) |
| drive mode | Constant current drive |
| white balance brightness | 2500cd/m 2 |
| refresh rate | ≥1920Hz |
| LED Box | Dimensions of the outer edge of the box | W 786.4 mm*H 256 mm |
| Display area size | W 780mm * H 249.6mm |
| Number of single modules | 5pcs _ |
| Power supply | Vehicle power supply |
| Cabinet resolution | W1 5 0*H 96 dots |
| box material quality | Acrylic whole board |
| Closest viewing distance | 4m |
| LED box | perspective | 140°(W) 140°(H) |
| ambient temperature | -20℃～+ 70 ℃ |
| Relative humidity | 10%-75% non-condensing |
| Protection class | IP3 0 ( This product is strictly waterproof , can not get wet , can not be washed ) |
| Overall thickness | 55 mm (including power supply) |
| match system card | Carlette / Xixun |
| The main technical parameters | Operating Voltage | AC 12V (vehicle light modification) |
| Average power consumption | < 45W _ |
| Maximum power consumption | < 100W _ |
| way to control | Default asynchronous control |
| Grayscale/Color | Class 16384 |
| MTBF | >9000hours |
